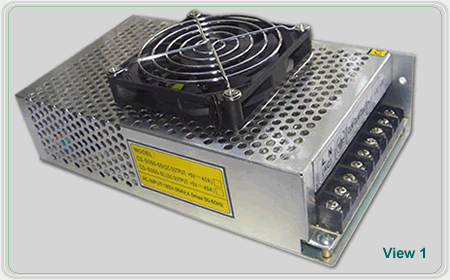

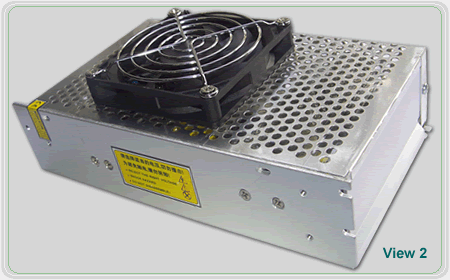

Industrial Power Supply 5V60 12V26A
|
|
 Parameter
|
|
|
| |
| DC Voltage |
5V |
12V |
| Rated Current |
60A |
26A |
| Curent Range |
0～50A |
0~25A |
| Rated Power |
300W |
300W |
| Ripple And Noise (Maximum) *Remarks 2 |
100mV |
120mv |
| Efficiency (TYP) |
82.3% |
86% |
| Voltage Adjustment Range |
4.5V～5.6V |
11.40V～12.60V |
| Voltage Accuracy *Remarks 3 |
±2.0% |
| Adjustment Of The Rate Of Linear |
±0.5% |
| Load Regulation ±1.0% |
±1.0% |
| Boot Up, Rising, Hold Time |
200ms,100ms,20ms |
| AC Voltage Range |
90～132VAC/180～264VAC(To choose by switch) |
| Frequency Range |
47～63HZ |
| AC current 5A / 115VAC3A / 230VAC |
| Surge Current (MAX) |
50A/115VAC50A/230VAC |
| Leakage Current |
＜3.5MA/240VAC |
| Over Load |
Rated Power Of 105%～135% Over Load Protection Activate |
| Protected Type: Constant Current Limiting, Load Abnormal Conditions Can Be Removed Automatically After The Restoration Of |
| Over Voltage |
5.75V～6.75V |
| Protected Type: Hiccup Mode, Can Be Restored After Removing The Abnormal Voltage |
| Over Temperature |
RTH2≥110℃ |
| Protected Mode: Start The Cooling Fan For Heat Dissipation To The Power Supply To Ensure Power Supply In Harsh Environment To Work |
| Operational Temperature |
-10℃～+50℃ |
| Operational Humidity |
20～90% RH,No Condensation |
| Storage Temperature |
-20℃～+85℃ |
| Storage Humidity |
10～90%RH |
| Temperature Coefficient |
±0.03%℃(0～+50℃) |
| Vibration Resistance |
By X, Y, Z Axis, 10 ~ 500HZ, 2G10 Minute / Cycle, A Ttal Of 60 Minutes |
| Certification |
UL1950,CE&CCC |
| Pressure |
I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
| Insulation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC70%RH |
| Electromagnetic Interference |
FCC Part 15.J Conducvction.ClassA |
| MTBF |
271.9K hrs.min. MIL-HDBK-217F(25℃) |
| Size |
200*110*50(L*W*H) |
| Packaging |
0.83KG 12 Per Box |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
Product Reliability
|
| |
| |
| [Model]:CD-S450 |
| [Frequency Range]:47～63HZ |
| [AC Current]:5A / 115VAC 3A / 230VAC |
| [Operational Temperature]:-10℃～+50℃ |
| [Operational Humidity]:20～90% RH ,No Condensation |
| [Storage Temperature]:-20℃～+85℃ |
| [Storage Humidity]:10～90% RH |
| [Temperature Coefficient]:±0.03%℃(0～+50℃) |
| [Protection]:Over/Under Load, Over Voltage, Short Circuit |
| [Product Features]:●82% Of Ultra-High Efficiency, Low Heat |
| ● Work To Use High-Temperature 55 ℃ |
| ●AAll New Products, The Quality Of A Painting |
| ● AC Input Range Can Be Switched Switch Choice |
| ● Long Life With Low Operating Temperature |
| ● 100% Full Load Burning Test |
| ●Small Size, Light Weight |
| [Safety Certification]:3C,CE,UL |
|
|
| |
| |
| |
| |
| |
| |
| |
| |
|
