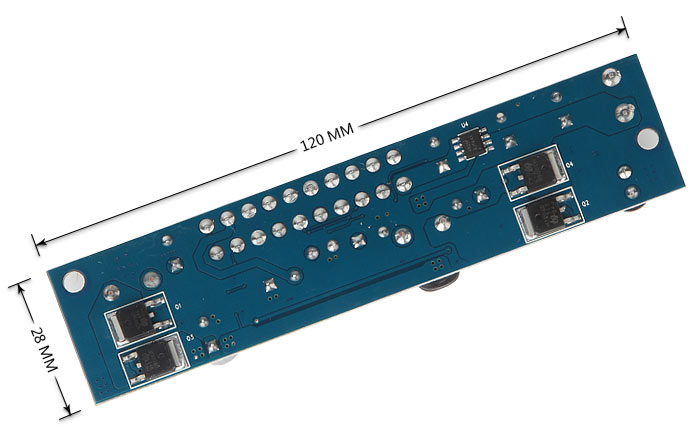

MINI-ITX Power ---- DC/DC ATX Power Supply |
|
DC/DC ATX Power Supply is a fully compliant DC-DC ATX PC PSU. The DC/DC ATX Power provides a cool,
silent 120 Watts of power for small PC designs using a single 12V power source.DC/DC ATX Power Supply mini-itx power
|

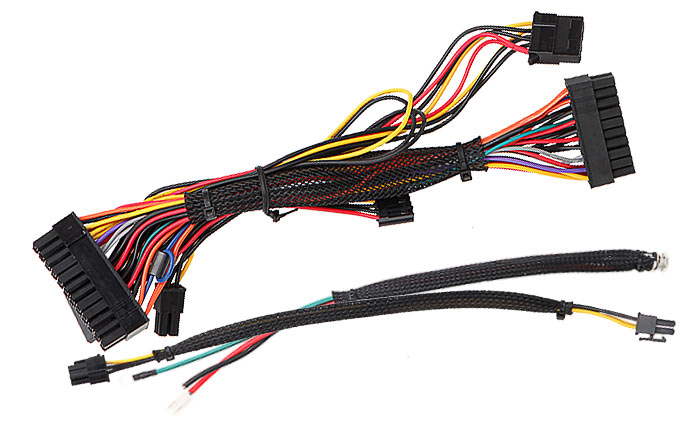

 Output interface : |
|
|
 |
 |
 |
 |
 |
20+4 Pin Connector |
4 Pin Molex Connector |
SATA Connector |
4 Pin 12V Connector |
4 Pin Floppy Connector |
Output parameter : |
|
| Model：LD120W12V |
| DC INPUT |
DC 12V |
| DC OUTPUT |
+12V |
+5V |
+3.3V |
-12V |
+5VSB |
120W
|
MAX
COMINEO
WATTS |
6A |
5A |
5A |
0.15A |
2.0A |
| POWER : 120W |
|
Electrical Specification : |
|
Model：LD120W12V
Rated power：120W
Input voltage range：12V DC (11.2VDC—14.8VDC)
Input surging current：12.0Vmax@12VDC
Work efficiency：≥90%
Working temperature/humidity：5℃ to 50℃ /45%-75%℃
Storage temperature/humidity：-40℃ to +70℃/10%-90%
Fanless DC-DC solution for 100% mute operating.
Compact design, special for mini-itx and 1U case.
|
|
aracteristics and advantages : |
|
Strictly design and manufacture according to MINI-ITX power supply design specification.
Double sided PCB and SMT process are adopted.
High efficiency, small volume, good heat dissipation.
Multiple protection: over current, over voltage, short circuit multiple protection function. Protection
（for+3.3V，+12V,+5.00V&+5.00VSB power output）
OCP：output shut down when output current reaches the peak point.
Short-circuit protection：output shut down when short-circuit.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time
MINI-ITX Power ----DC/DC ATX Power Supply is a fully compliant DC-DC ATX PC PSU.
It can power VIA mini-ITX boards with C3 or C7 processors, P3, P4, Pentium-M, Core
Duo Mobile or Desktop versions and llow power AMD processors.compatible with an
entire range of mini-itx motherboards as well as regular boards. The DC/DC ATX Power
provides a cool, silent 120 Watts of power for small PC designs using a single 12V power
source.
- Very small, can build unltra-compact PC enclosures and slim server enclosures.
- Fits any motherboard equipped with a 20 or 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Operates at only 12V.
- Highly efficient design, does not produce a lot of heat.
- Ideal for low power Intel Core Duo as well as all VIA C7/nano or AMD motherboards.
|
|
Application : |
|
MINI computer,one computer,POS machine,digital set top box,ITX case,network server,advertisement machine,bank terminal.etc. |
|
| |
