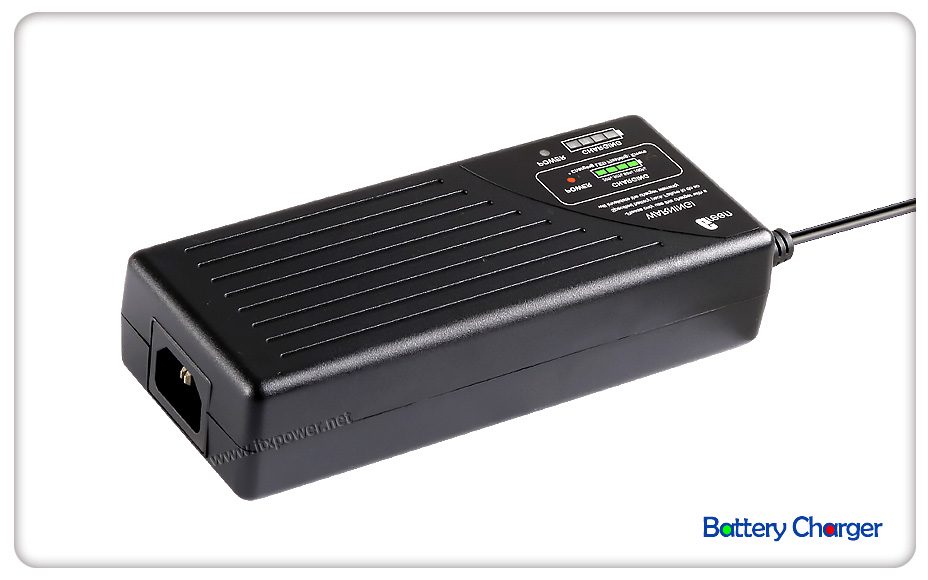

12V 4A Battery Charger
|
 |
 |
12V 4A Battery Charger ● Green: Fast charge ● Red: Finish / Standby |
|
 12V 4A Battery Charger 12V 4000MA Battery Charger Parameter
|
|
|
| |
● Model ：ABT040120CD |
| |
● Output voltage ：12V |
| |
● Output current ：4A |
| |
● Input voitage range ：100-240V AC |
| |
● Input voltage frequency ：50-60Hz |
| |
● Variation Frequency ：47~63Hz |
| |
● Size ：73（L)*43(W)*27mm |
| |
● Status Display ：Red and Green double color indicator（●Green: Fast charge ●Red: Finish / Standby） |
| |
● Charging mode ：Constant-Current And Voltage With Float Three-Smart Charging |
| |
● Supporting The Battery ： Lead-Acid Batteries, Ilithium Iron Phosphate Battery. |
| |
12V 4A Battery Charger 12V 4000MA Battery Charger Product Reliability
|
| |
| |
● Ielectric Strength(Hi-pot) ：Primary to Secondary: 1500Vac 10mA 60S |
| |
● Protection ：Over-voltage Protection, Over-current Protection,Short Circuit Protection |
| |
● ESD ：Contact discharge performance is 4KV;Air discharge performance is 8KV |
| |
● Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours. |
| |
● Wide input voltage range, in line with global standards. |
| |
● Dropping packed ：1 Corner 3 edges 6surfaces 100cm |
| |
● MTBF: According to MIL-HDBK-217F Standard, Full Load, 25 ℃, More Than 50000 Hours |
| |
● Vibration ：10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour
for each of the perpendicular axes X, Y, Z |
| |
|
12V 4A Battery Charger 12V 4000MA Battery Charger Features and Advantages
|
| |
| |
12V 4A Battery Charger,Ultra-safe Design, Mall Size, Good Looks, Cost-Effective.
|
| |
12V 4A Battery Charger,Complete Specifications, High Charging Efficiency. |
| |
12V 4000MA Battery Charger,Different Options For Input AC And Output DC Plugs, Accept OEM Order |
| |
|
