atx power supply pc power supply |
|
|
 Output interface : |
|
|
 |
 |
 |
 |
 |
20+4 Pin Connector |
4 Pin Molex Connector |
SATA Connector |
4 Pin 12V Connector |
4 Pin Floppy Connector |
Output parameter : |
|
| Model：6106 Series |
| AC INPUT |
115V/230V 10A/6A 50-60Hz |
| DC OUTPUT |
+12V |
+5V |
+3.3V |
-12V |
+5VSB |
| 350W |
MAX
COMINEO
WATTS |
17A |
18A |
14A |
0.5A |
2.0A |
| 350W |
|
Electrical Specification : |
|
The Total Wattage Output :350W
Efficiency:> 75%
PFC (Power Factor Correction): (Bbased On Customer Requirements To Provide)
P.G. Signal :100-500 MS
Color: Metallic Silver (Which Can Be Provided In Accordance With Customer Requirements)

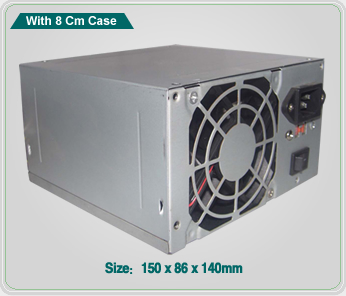

Size: Refer To Figure
Wire: Standard (Which Can Be Provided In Accordance With Customer Requirements)
Standard Exposed Length For Wire: .350 mm (Can Be Provided In Accordance With Customer Requirements)
Operating Temperature: 5 ℃ to 50 ℃
Storage Temperature: -40 ℃ to 70 ℃
Working Humidity: 20% to 85%, Non-Condensing
Storage Humidity: 10% to 95%, Non-Condensing
|
|
aracteristics and advantages : |
|
Over Power Protection, Over-Voltage Protection, Under-Voltage Protection,
Short Circuit Protection Etc.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time Protection
（for+3.3V，+12V,+5.00V&+5.00VSB power output）
OCP：output shut down when output current reaches the peak point.
Short-circuit protection：output shut down when short-circuit.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time
|
|
Application : |
|
| |
| |
